CANRIA K16 ARTNET+DMX CONSOLE LED CONTROLLER, Professional Lighting Control

Canria K16 ARTNET+DMX CONSOLE LED CONTROLLER, Professional Lighting Control

Name: CANRIA K16 ARTNET+DMX CONSOLE LED CONTROLLER, Professional Lighting Control
Brand: CANRIA
SKU: B0CBFQ2MPL
Price: 232.20 USD
Availability: InStock

US$232.20

Arrives as soon as ✓ Free shipping — over $200

Description

Product Overview The CANRIA K16 ARTNET+DMX CONSOLE LED CONTROLLER is a Lighting Accessories product. It features working performance: (1)dmx and online offline mode switching is convenient..Key Fea...

Delivery & Returns

Ships to the United States

Free shipping on orders over $200 · $6.90 below that

30-day returns. For change-of-mind returns, return shipping charges may apply depending on the item's packaged size and weight. Returns for damaged, defective, or incorrect items are free.

Free shipping $200+

Orders of $200 or more ship free. No code needed.

Reviews

Drumford Find Drumford on ShopTap to open the Shop app shopFollow us →

Product Overview

The CANRIA K16 ARTNET+DMX CONSOLE LED CONTROLLER is a Lighting Accessories product. It features working performance: (1)dmx and online offline mode switching is convenient..

Key Features

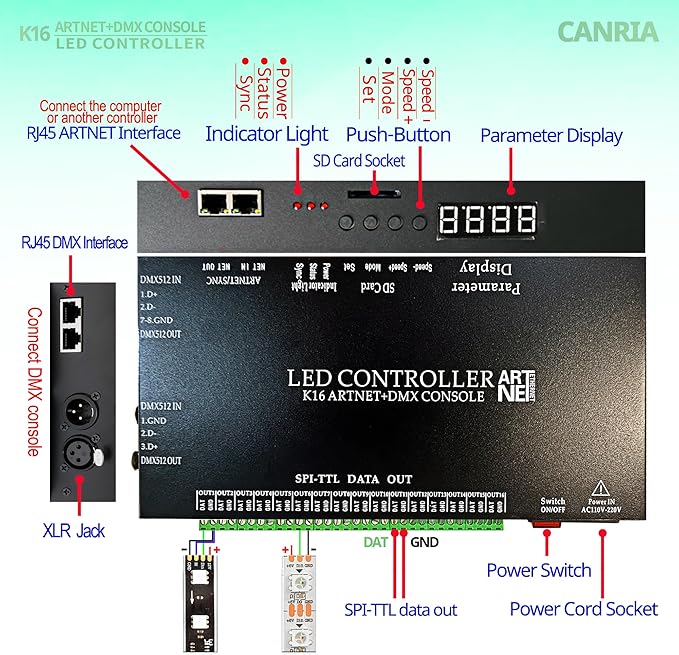

Working Performance: (1)DMX and online offline mode switching is convenient. (2)Offline, insert the SD card, support up to 100 program effects to switch back and forth. (3)Online, unplug the SD card. supports Art-Net protocol and supports Madrix software to directly play program effects. (4)Adopting the international standard TCP/IP network protocol, the transmission rate supports 100/Gigabit adaptive, the transmission speed is fast and stable. Using cat5e network cable in series, the maximum transmission distance between controllers is 100 meters, you can add switches or use optical fibers for long-distance transmission. (5)Four digit display and four buttons for easy operation.
Technical Parameters: (1)Wide voltage input AC110-220V, rated power 4W, 16 ports output. (2)Offline, load capacity 1024 ICs/port, totaling 16384 ICs. (3)Online, load capacity 680 ICs /port, totaling 10880 ICs. (4)Gray level 32-65536. (5)Supporting online softwares Madrix, Resolume6, Arkaos etc.Online live editing and play of programs. (7)LedMagic is specifically designed for offline use our controllers, constantly being updated. It may be intercepted by antivirus software and needs to be added to the whitelist for normal use. (8)Support software independent effect editing, support Madrix software editing, support video import, support text editing, support batch import effect materials.
Making program effect: (1)Supporting online softwares Madrix, Resolume6, Arkaos etc.Online live editing and play of programs. (2)LedMagic is specifically designed for offline use our controllers, constantly being updated. It may be intercepted by antivirus software and needs to be added to the whitelist for normal use. Support software independent effect editing, support Madrix effects import, support video import, support text editing, support batch import effect materials. STEP: Create a new project-Select the controller model "K-16000-ALL"-Import dxf or create layout-Open effect-Record-Preview-Exit preview-Export effect-Save 01.led to the SD card (Generate 1 file with multiple programs)

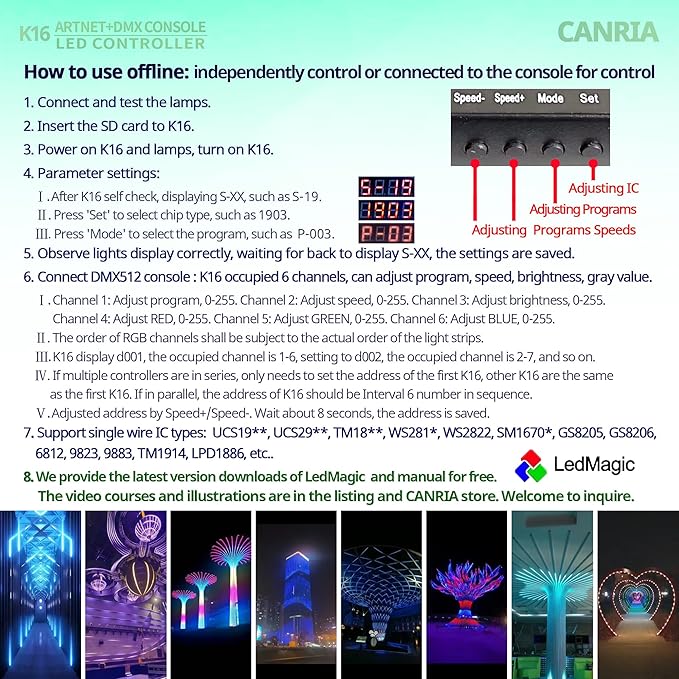

Offline: independently control or connected to DMX console control. (1)Connect and test the lamps. (2)Insert the SD card. (3)Power on K16 and lamps. (4)After K16 self-check, display S-XX. (5)Press 'Set' to select chip type 1903. (6)Press 'Mode' to select the program, P-XX. (7)Observe lights display, waiting for back to display S-XX, the settings are saved. (8)If multiple controllers are in series, only needs to set the address of the first K16, other K16 are the same as the first K16. If in parallel, the address of K16 should be Interval 6 number, such as d001,d007... Adjusted address by Speed+/Speed-. Wait about 8 seconds, the address is saved. (9)Support single wire IC 1903 etc...

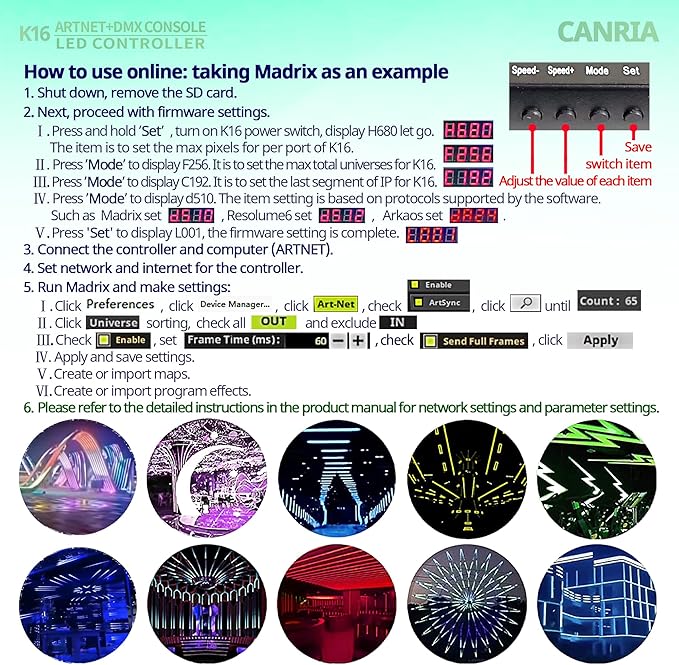

Online: taking Madrix as an example (1)Shut down, remove the SD card. (2)Press and hold ’Set’, turn on K16 power switch, display H680. The item is to set the max pixels for per port of K16. (3)Press ’Mode’ to display F256. It is to set the max total universes for K16. (4)Press ’Mode’ to display C192. It is to set the last segment of IP for K16. (5)Press ’Mode’ to display d510. The item setting is based on protocols supported by the software, such as Madrix set d510, Resolume6 set d512, Arkaos set dA24. (6)Press 'Set' to display L001, the firmware setting is complete. (7)Connect the controller and computer. (8)Set network and internet for the controller. (9)Run Madrix and make settings.

Why Choose the CANRIA K16 ARTNET+DMX CONSOLE LED CONTROLLER

The CANRIA K16 ARTNET+DMX CONSOLE LED CONTROLLER offers working performance: (1)dmx and online offline mode switching and technical parameters: (1)wide voltage input ac110-220v, rated power. These features make the CANRIA K16 ARTNET+DMX CONSOLE LED CONTROLLER a strong option in the Lighting Accessories category.

Best For

The CANRIA K16 ARTNET+DMX CONSOLE LED CONTROLLER is best suited for: offline use our controllers.

Quick Summary

The CANRIA K16 ARTNET+DMX CONSOLE LED CONTROLLER is a Lighting Accessories product by CANRIA. Color: Black. Shape: Rectangular. Material: Metal. Finish Type: Painted. Light Source Type: LED.
