Product Overview

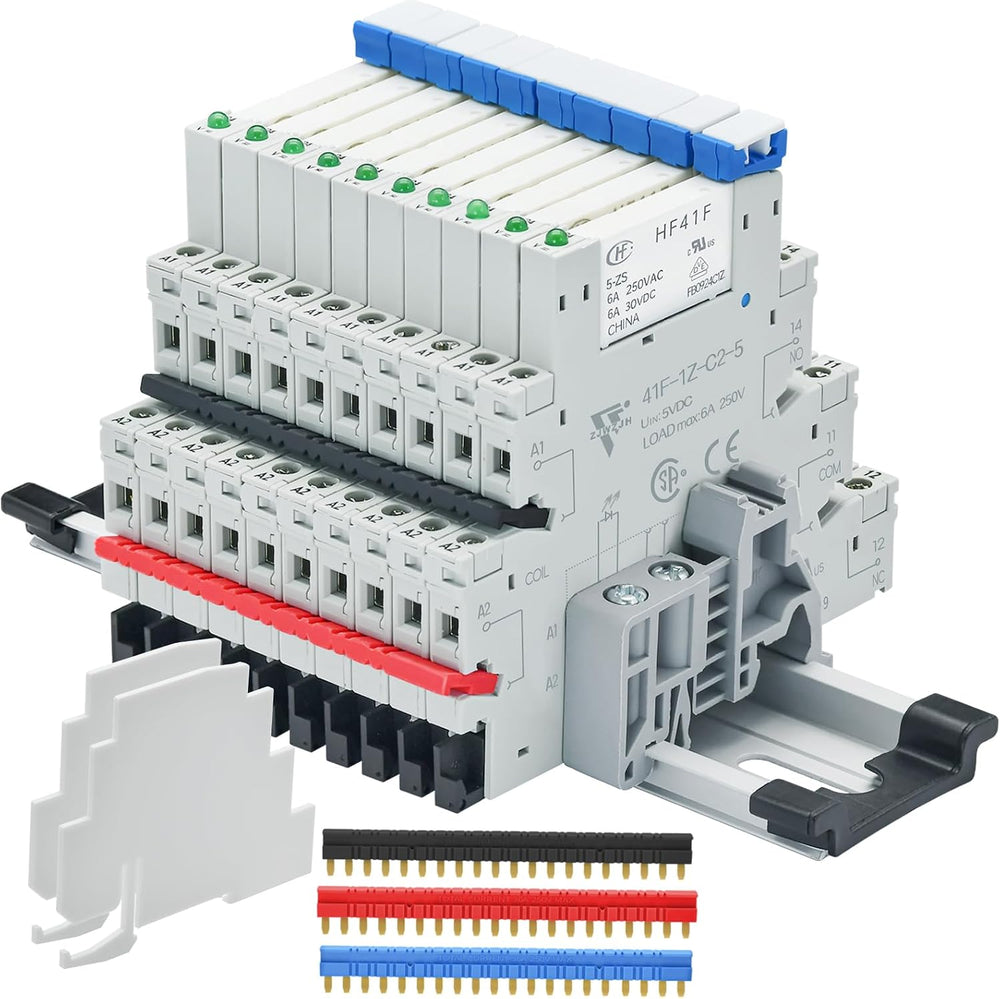

The ZJWZJH 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification is a Electromechanical Relays product by ZJWZJH. It features 【certifications】 power relay through ul and vde certification, socket through.
Key Features

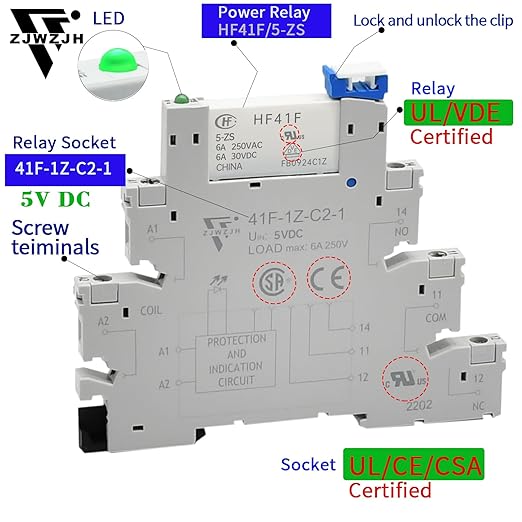

- 【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power RelayThe thickness is only 0.24 "/6.2mm.
- 【Electromechanical Relays】Relay Coil Voltage:5V DC, Contact : SPDT 1 Normally Closed + 1 Normally Open. Terminals : 5 Pin; Contact Rating: 6Amp 250VAC / 30VDC, Construction: Plastic seaied. Mechanical life: 10,000,000 Cycles; Electrical life: 300,000 Cycles.

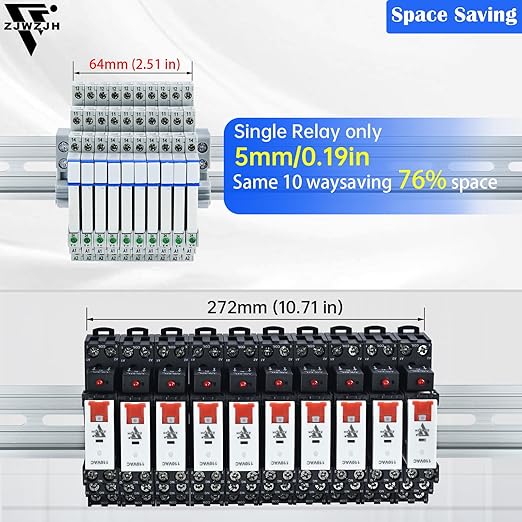

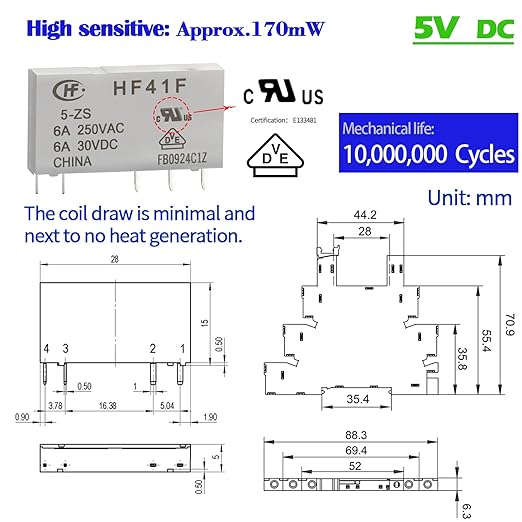

- 【Size】Relay Model:HF41F/5-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).
- 【Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (12~24)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

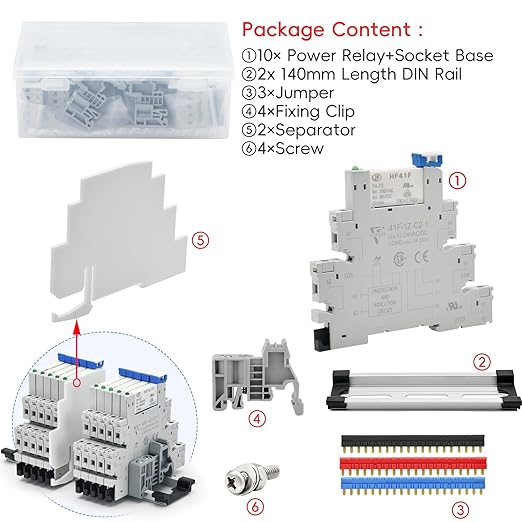

- 【Package】Package Content : 10× Power Relay; 10× Relay Socket Base; 2x 140mm Length DIN Rail;3×Jumper;4×Fixing Clip;2×Separator; 4×Screw.Ambient temperature: -40℃ ~ 70℃.
Why Choose the ZJWZJH 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification
The ZJWZJH 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification offers 【certifications】 power relay through ul and vde certification, and 【electromechanical relays】relay coil voltage:5v dc, contact : spdt. These features make the ZJWZJH 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification a strong option in the Electromechanical Relays category.
Best For
The ZJWZJH 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification is best suited for everyday electromechanical relays needs.
Quick Summary
The ZJWZJH 10Pcs 5 Volt Relay Miniature Power Relay 5V DC 6Amp SPDT with LED Indicator Socket Base 41F-1Z-C2 with Jumper Separator Socket Base DIN Rail UL Certification is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver Tin Oxide. Contact Type: Spdt. Current Rating: 6 Amps. Mounting Type: DIN Rail Mount.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver Tin Oxide |
| Contact Type | Spdt |
| Current Rating | 6 Amps |
| Mounting Type | DIN Rail Mount |
